ECA-Zero
Potentiostat without EIS, with the same 24-bit ADC as the rest of the range.
A potentiostat without impedance spectroscopy. It runs voltammetry, amperometry, and open-circuit measurements with the same 24-bit ADC and ±2 V, 50 mA range as the rest of the ECA series.
Highlights
- 24-bit ADC
- ±2 V, 50 mA
- USB powered
- Same ADC as the ECA-5M
Example measurement
Amperometry, −40 to +40 pA in 10 pA steps
Recorded on an ECA-Zero. Test currents were generated by applying controlled bias voltages across a 100 MΩ resistor; 1 mV corresponds to 10 pA. Measurement example, not an accuracy specification.

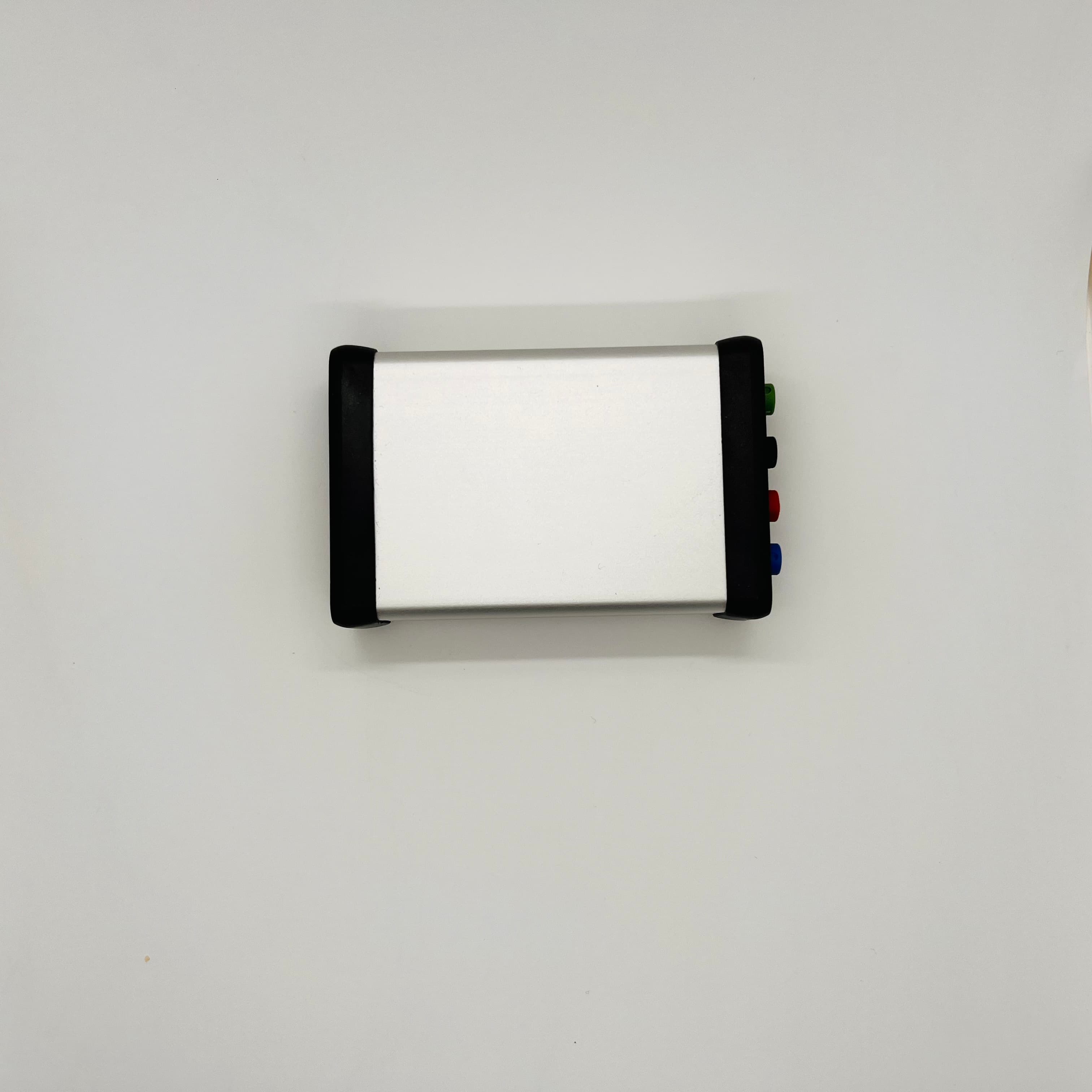

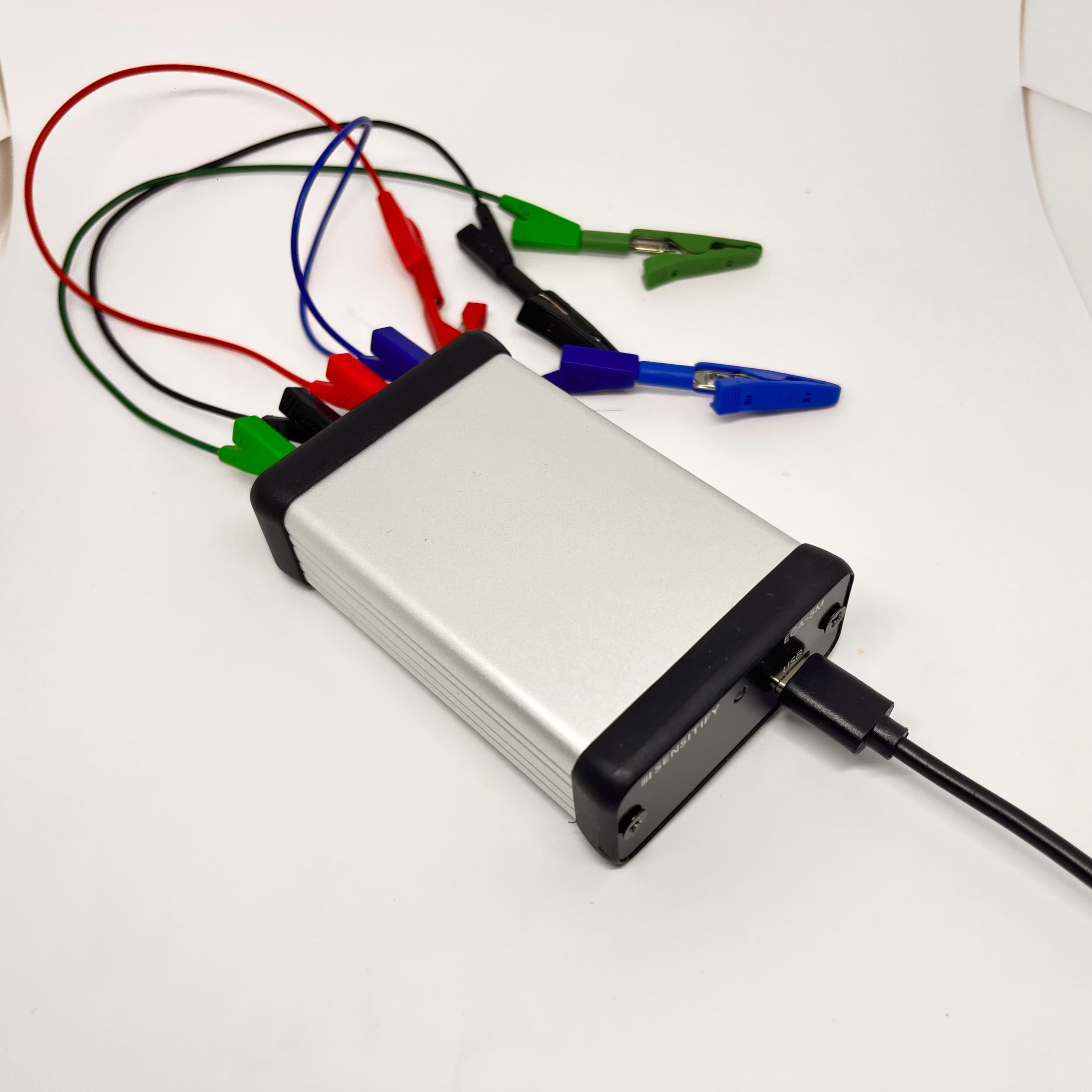

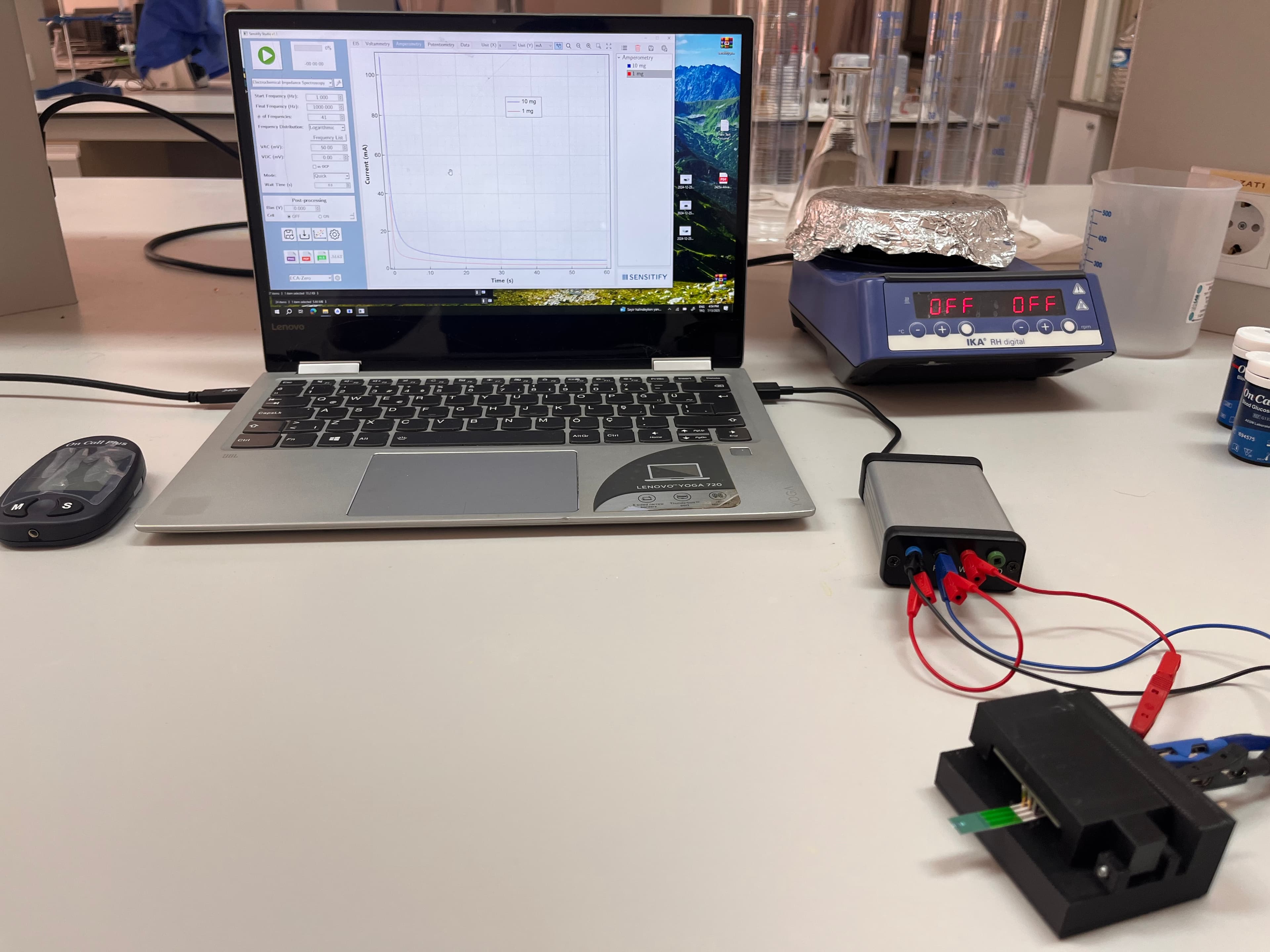

Photos
Mechanical
ECA-Zero enclosure
Third-angle projection, dimensions in millimetres. Connector positions are not dimensioned.
- Overall
- 86 × 57 × 23 mm
- Enclosure
- Aluminium
- Cell
- WE, RE, CE and GND banana jacks, one end
- Host and power
- USB-C, opposite end
A STEP model of the enclosure is available for fixture and rack design. Request the STEP model.
Supported techniques
In the box
- ECA-Zero instrument
- Four 30 cm stackable banana plug leads
- Four detachable crocodile clips
- USB-C cable
- Test fixture
- Dummy cell
- Carrying case
Specifications
General
- Input voltage
- USB 5 V
- Max input current
- 200 mA
- Dimensions
- 86 × 57 × 23 mm
Potentiostat
- Modes
- Potentiostat only
- Potential range
- ±2 V
- Compliance voltage
- ±2 V
- Potential resolution
- 0.001 mV
- Current range
- ±50 mA
- Minimum resolved current step
- 0.1 pA on the ±1 nA range
- Max scan rate
- 0.3 V/s
- Analog-to-digital converter
- 24-bit
Impedance
Not available on this instrument.
Every instrument is factory-calibrated and tested before shipment.
