ECA-500k
EIS to 500 kHz with low-level current measurement.
A potentiostat and impedance analyser for routine impedance measurements up to 500 kHz. It shares the 24-bit ADC and ±2 V, 50 mA potentiostat of the ECA-5M at half the price, with a 25 MSPS DAC and 100 fF capacitance resolution.
Highlights
- EIS up to 500 kHz
- DAC: 25 MSPS
- 100 fF resolution
- USB powered
Example measurements
Cyclic voltammetry, 50 mM ferrocyanide
50 mM ferrocyanide on a screen-printed electrode, 100 mV/s. Recorded on an ECA-500k.
Impedance spectrum, 50 mM ferrocyanide
50 mM ferrocyanide on a screen-printed electrode, at open-circuit potential, 10 mV amplitude, 50 kHz to 1 Hz. Recorded on an ECA-500k.

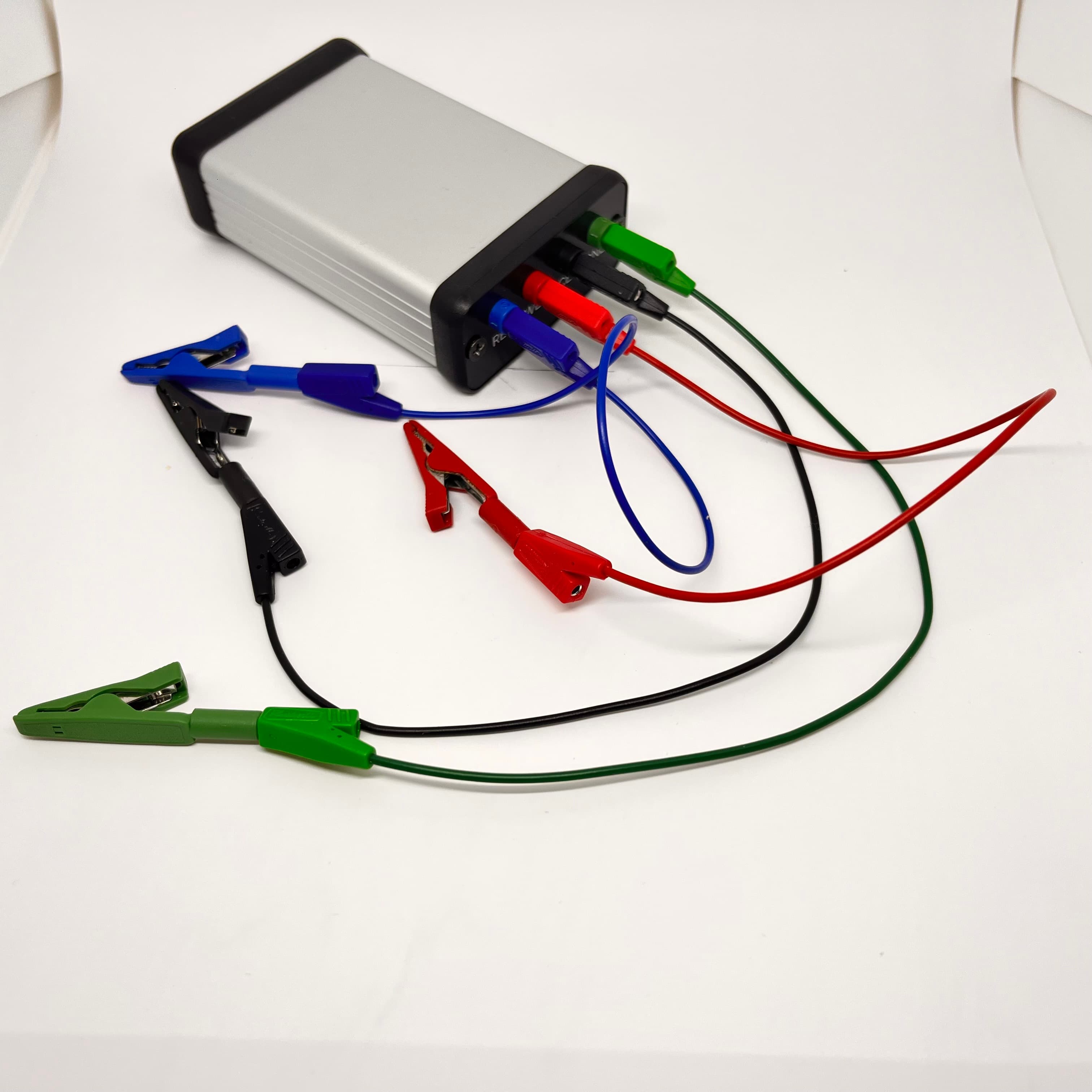

Photos
Supported techniques
In the box
- ECA-500k instrument
- Four 30 cm stackable banana plug leads
- Four detachable crocodile clips
- USB-C cable
- Test fixture
- Dummy cell
- Carrying case
Specifications
General
- Input voltage
- USB 5 V
- Max current
- 200 mA
Potentiostat
- Modes
- Potentiostat + EIS
- Potential range
- ±2 V
- Compliance voltage
- ±2 V
- Potential resolution
- 0.001 mV
- Current range
- ±50 mA
- Minimum resolved current step
- 0.1 pA on the ±1 nA range
- Max scan rate
- 0.3 V/s
- Analog-to-digital converter
- 24-bit
Impedance
- Frequency range
- 10 µHz to 500 kHz
- DAC sampling rate
- 25 MSPS
- Capacitance resolution
- 100 fF
Every instrument is factory-calibrated and tested before shipment.
