ECA-LP1New
Potentiostat, galvanostat, and impedance analyser for general electrochemistry.
One instrument for potentiostat, galvanostat, and EIS work up to 1 MHz. The ±5 V range and 250 mA compliance cover batteries, corrosion, and sensor work as well as fundamental research. The LP1 is powered over USB-PPS and housed in a 100 × 100 × 30 mm aluminium chassis.
Highlights
- Potentiostat + Galvanostat + EIS
- ±5 V, ±7.5 V compliance
- 250 mA max current
- EIS up to 1 MHz
- Fast scan CV up to 50 V/s
- USB-PPS powered, aluminium chassis

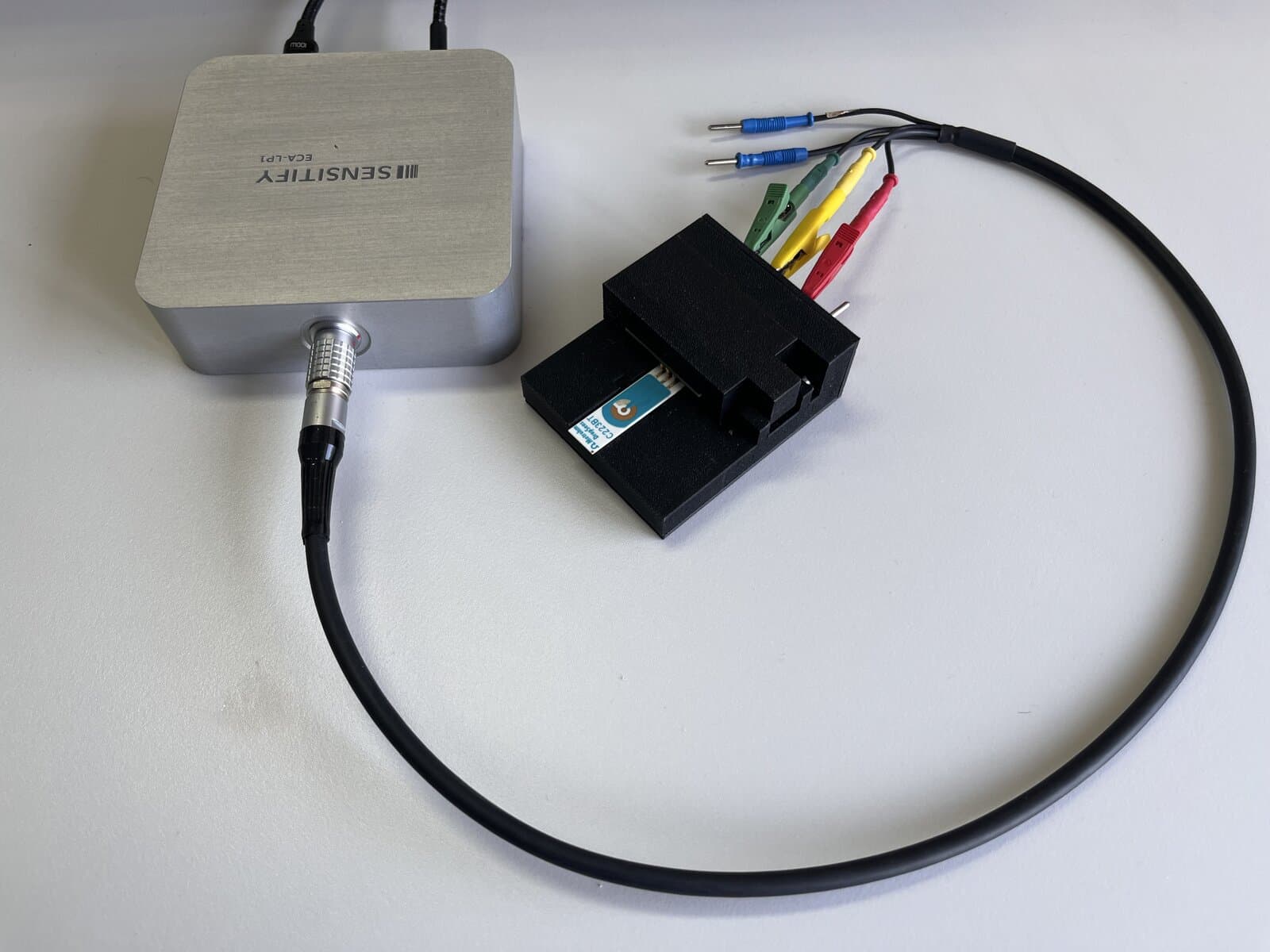

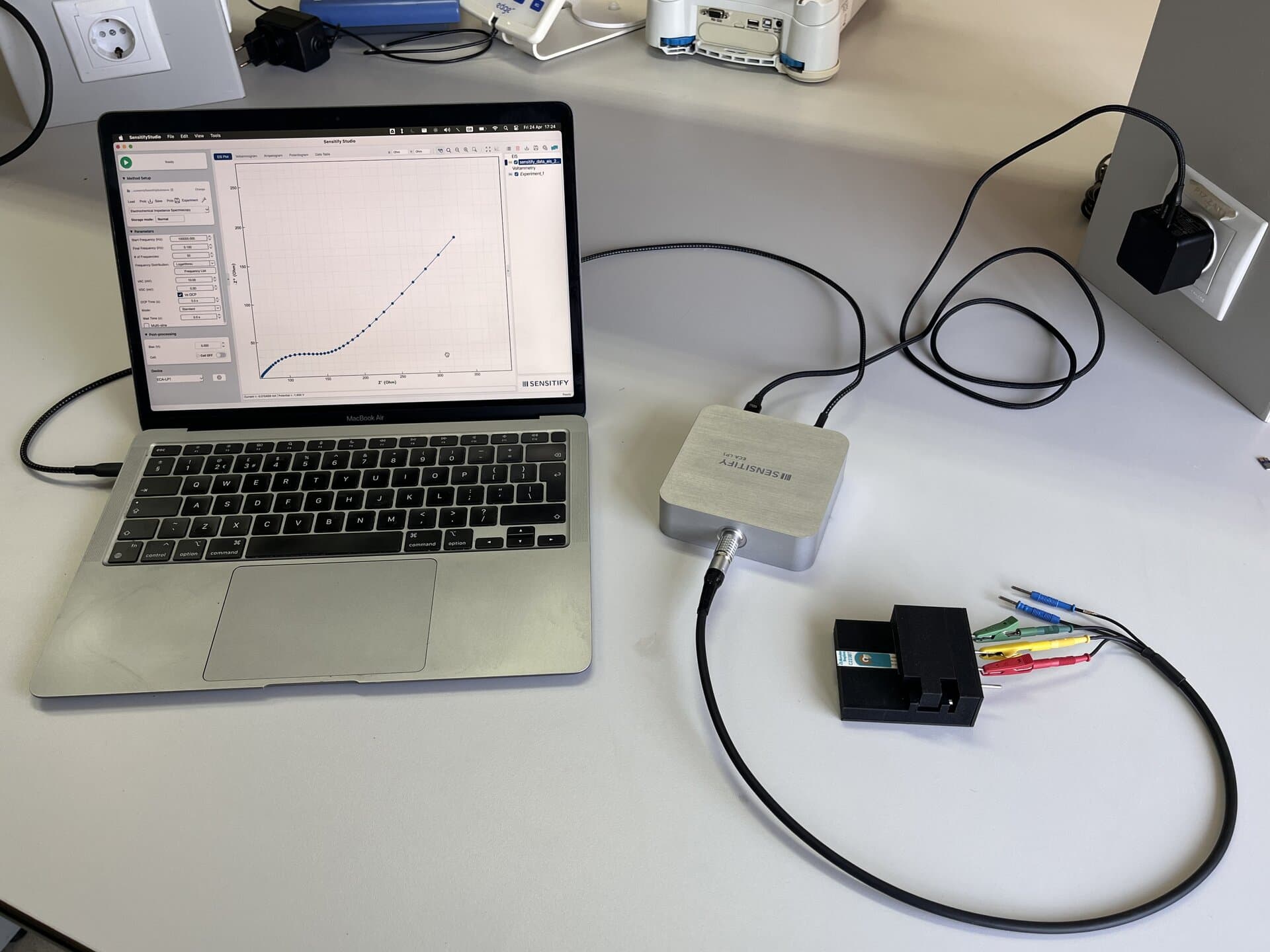

Photos
Supported techniques
Voltammetry
Potential
Battery
- Galvanostatic Intermittent Titration (GITT)
- Potentiostatic Intermittent Titration (PITT)
- Battery Cycling
In the box
- ECA-LP1 instrument
- USB-C PD adaptor with PPS support (20 V)
- Regional mains plug
- Cell cable (1 m, shielded, Lemo connector)
- Banana connectors with detachable crocodile clips
- USB-C host cable
- Dummy cell
- Carrying case
Specifications
General
- Type
- Potentiostat / Galvanostat / EIS
- Configuration
- 1 channel, 3-electrode
- Power supply
- USB-C PPS adaptor
- Host interface
- USB-C
- Onboard storage
- 128 GB
- Dimensions
- 100 × 100 × 30 mm
- Cable length
- 1 m
Potentiostat
- Potential range
- ±5 V
- Compliance voltage
- ±7.5 V
- Maximum current
- 250 mA
- Minimum current resolution
- 0.1 pA
- Maximum scan rate
- 50 V/s
- ADC resolution
- 24-bit (slow) / 16-bit (fast)
- DAC resolution
- 2 × 16-bit (fine and coarse)
Impedance
- Frequency range
- 10 µHz to 1 MHz
- Frequency tuning
- 28-bit DDS
- AC amplitude
- 1 mV to 350 mV
- Multi-sine
- Yes
- DAC sampling rate
- 80 MSPS
- ADC resolution
- 24-bit (single freq) / 16-bit (multi-sine)
- Lock-in detection
- Analog (single) / digital (multi-sine)
Every instrument is factory-calibrated and tested before shipment.
